Wafer carriersSilicon (Si)
Silicon (Si) Wafer Boats
Drawing-based silicon wafer carriers reviewed against the confirmed silicon grade, slot geometry and customer qualification criteria.

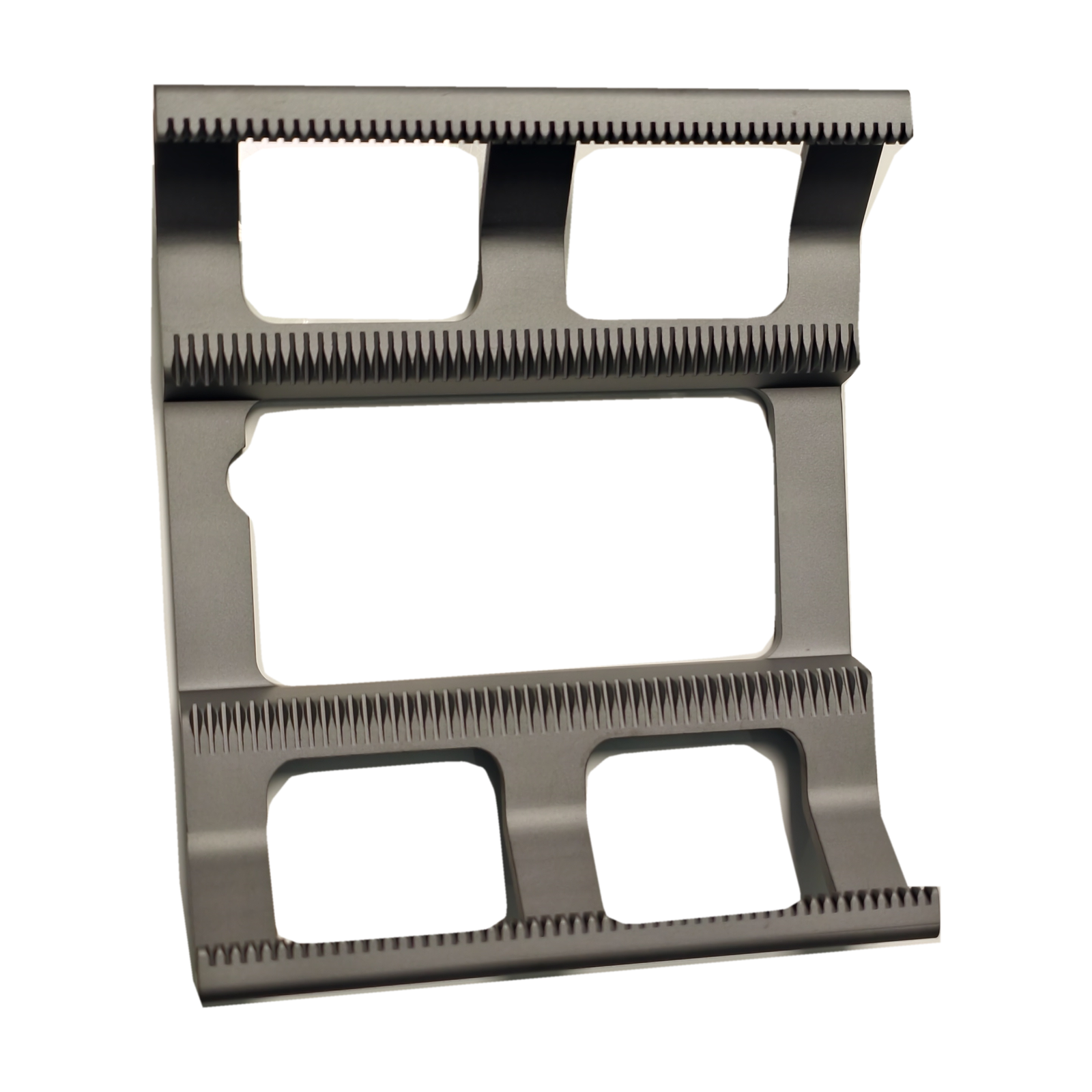

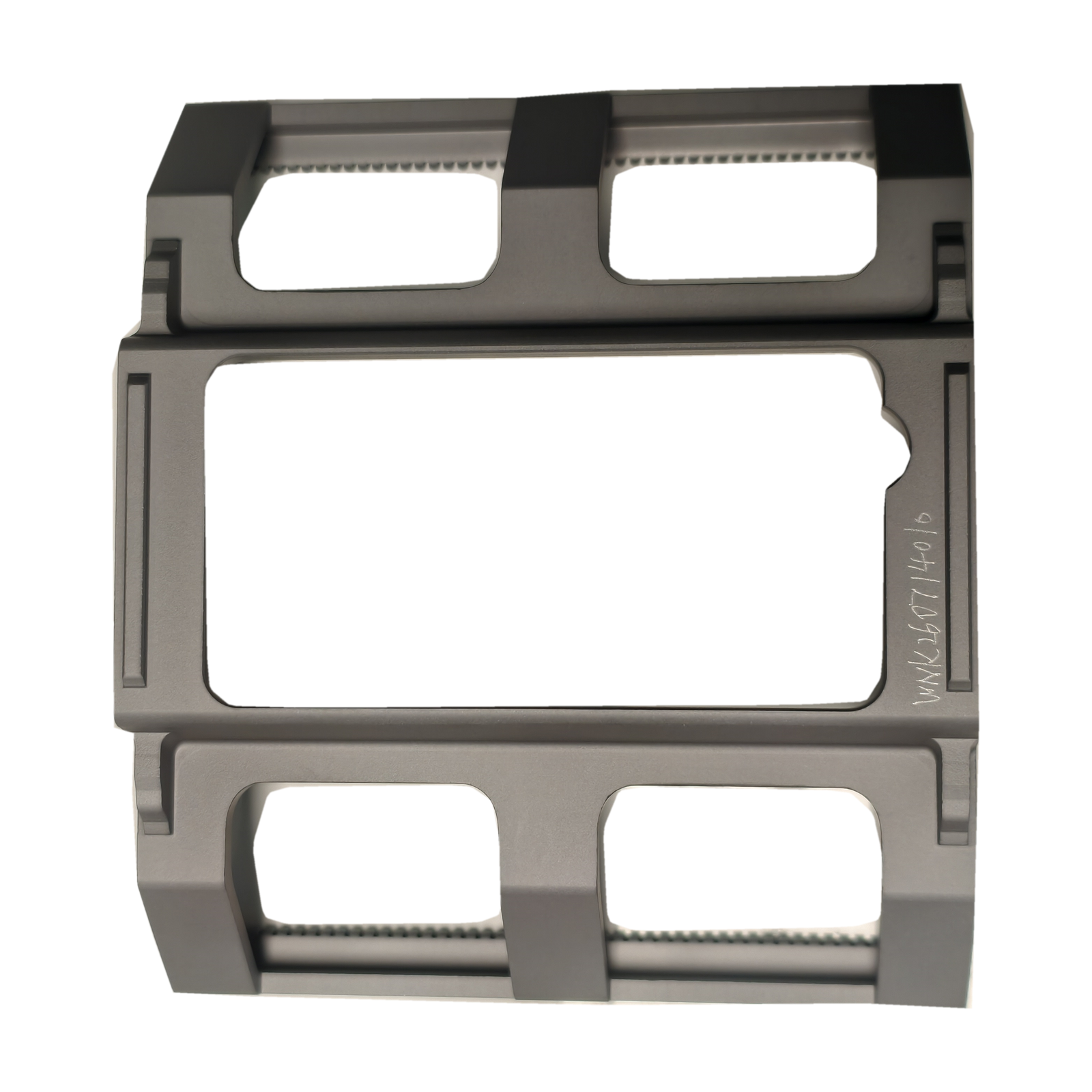

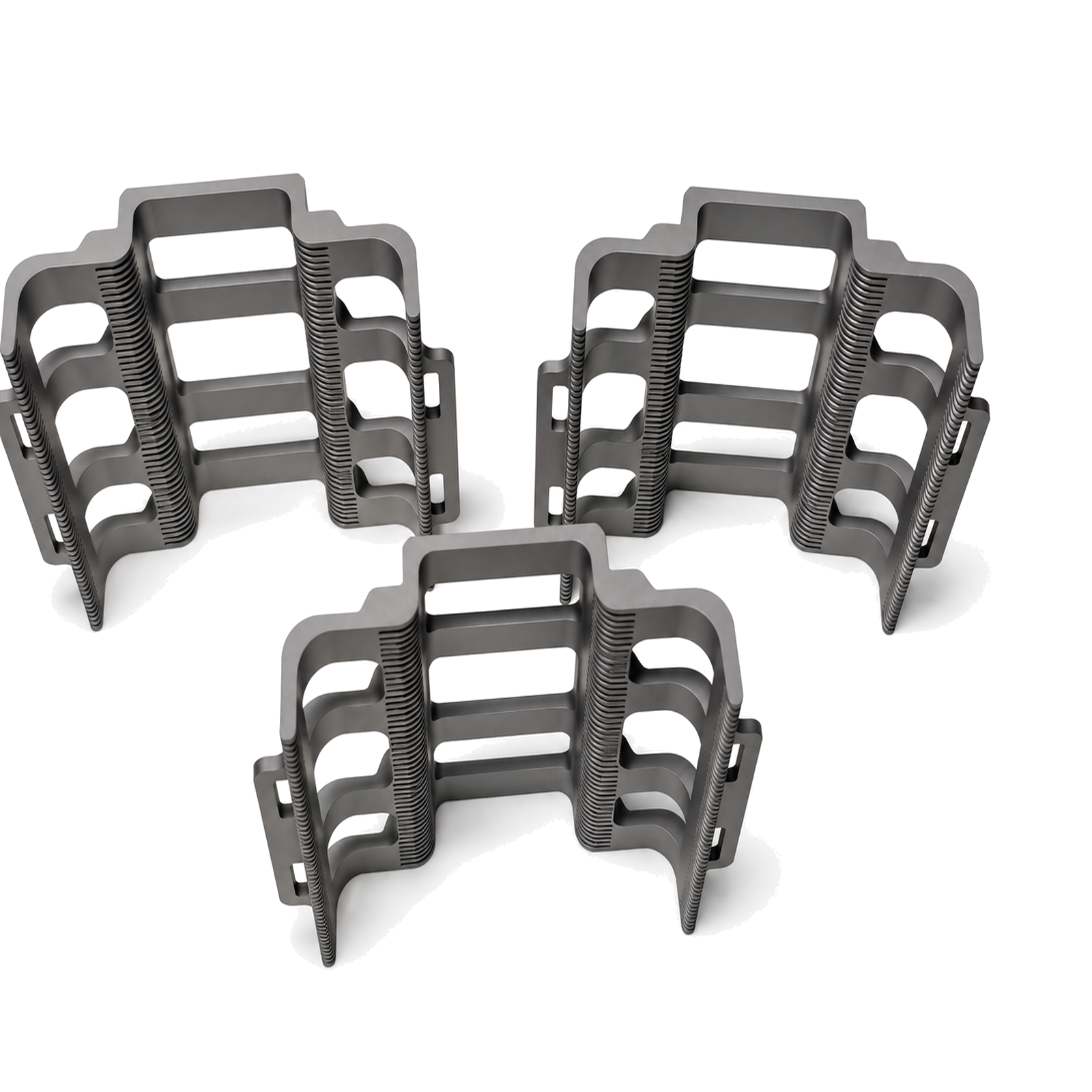

Representative family images. Final geometry and revision are confirmed against the customer drawing.
Material direction
Silicon (Si)
Candidate processes
Thermal processing · Deposition
Equipment areas
Wafer handling · Furnace
Size approach
Custom / drawing-led
What this family covers
- silicon boat
- wafer carrier
- slotted carrier
Define before quotation
- Silicon grade and material specification
- Wafer size and slot specification
- Thermal cycle and acceptance criteria
Engineering route
From identification to customer qualification.
- 01
Identify the part and equipment position
- 02
Review drawing, sample and process conditions
- 03
Agree critical dimensions and acceptance criteria
- 04
Build and qualify before repeat supply
Suitability boundary
This page identifies a candidate product family. It does not state compatibility with a specific tool, process recipe or OEM part number. Final suitability is confirmed against customer-controlled technical inputs.
Technical enquiry FAQ
What should I send first?
A controlled drawing is preferred. If no drawing is available, send the reference part number, clear photos and ask whether sample-based measurement is possible.
Can WONIK confirm compatibility from a photo?
No. A photo can help identify the candidate family, but material grade, dimensions and equipment compatibility require technical confirmation.
What makes a quotation faster?
Include equipment model and module, process, material or grade, quantity, critical tolerances, temperature, pressure or chemistry, cleaning, packaging and acceptance requirements.
