Semiconductor applications
Thermal processing
Oxidation · Diffusion · Annealing
Carriers, process tubes and thermal-support components for drawing-led furnace applications.
Process overview
Where the components fit
Thermal processing uses controlled heating to change a material or support a reaction. Oxidation, diffusion and annealing serve different purposes, and the temperature profile, atmosphere and time exposure depend on the device and process stage.
In suitable batch-furnace applications, wafer boats hold substrates while process tubes define the surrounding process space. WONIK reviews quartz and silicon carriers, tubes and thermal-support assemblies against the customer drawing, loading arrangement and acceptance criteria.
- 01
Support the substrates
Carrier orientation, slot geometry and loading interfaces define how wafers are positioned within the intended equipment.
- 02
Control the thermal environment
The furnace combines a defined atmosphere with a controlled heating cycle. Tube geometry and support position must be reviewed for that application.
- 03
Check the component requirements
Material, dimensional, cleanliness and inspection requirements are agreed before a component enters the customer qualification process.
Conceptual application guide—not an equipment operating procedure or a manufacturing recipe.
From process to part
Related component families
Representative product families for technical review. Listing a component here does not establish compatibility with a specific tool or process.
Wafer carriers
Vertical Quartz Wafer Boats
Vertical batch-carrier structures evaluated for coaxiality, accumulated slot error and wafer support geometry.
View product details
Wafer carriers

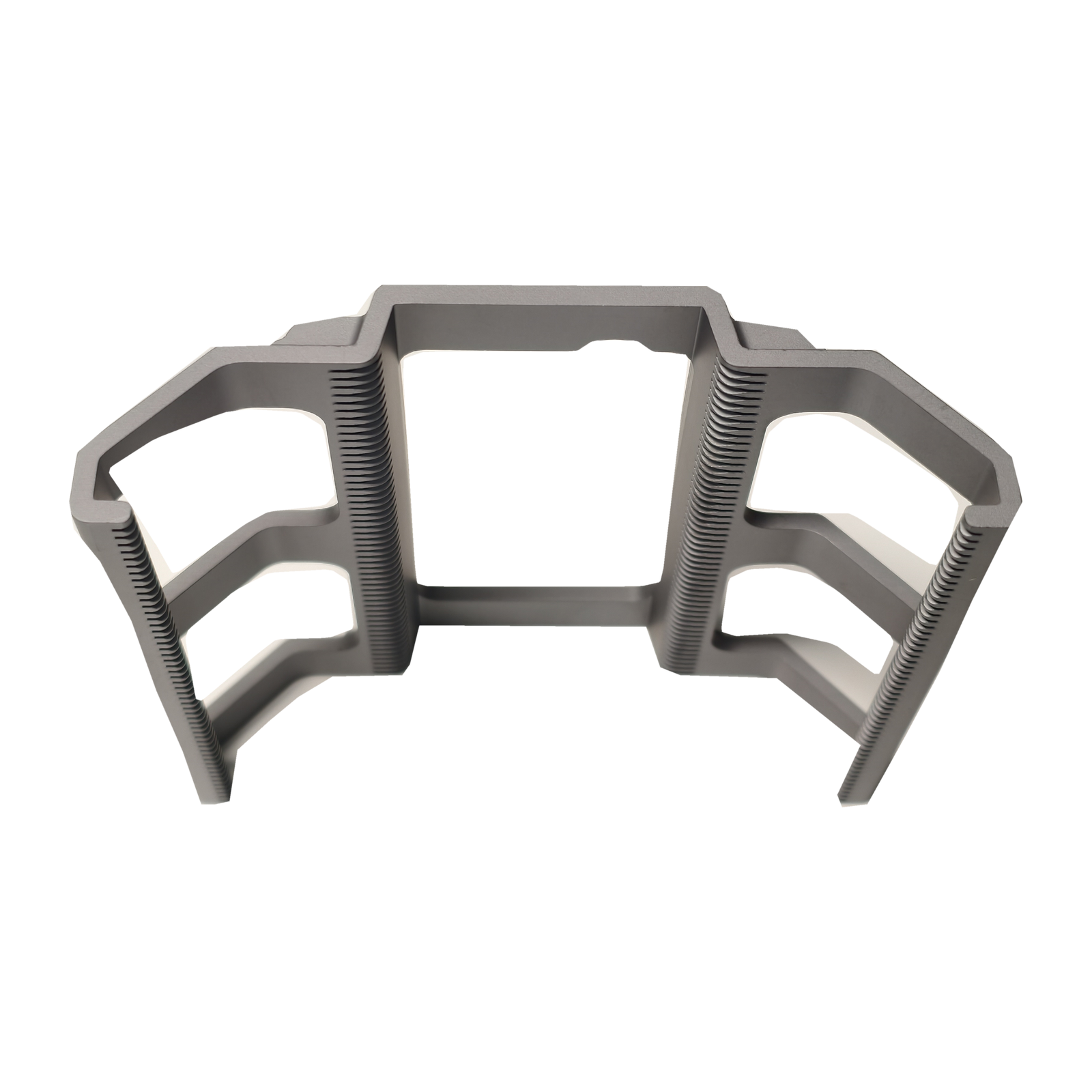

Silicon (Si) Wafer Boats
Drawing-based silicon wafer carriers reviewed against the confirmed silicon grade, slot geometry and customer qualification criteria.
View product details
Process tubes & chambers
Quartz Process Tubes
Inner, outer and assembled quartz tubes with interfaces, branches and sealing surfaces controlled to the drawing.
View product details
Thermal-zone components
Thermal Field & Insulation Assemblies
Thermal-zone and insulation candidates reviewed only after material, temperature profile and assembly position are confirmed.
View product detailsBefore quotation
Define your application.
Silicon (Si) and silicon carbide (SiC) are different materials. The silicon wafer boats shown here are Si products. No carrier, tube or thermal-support assembly is qualified for a tool or thermal cycle by its product name alone.
Request a technical review- Wafer or substrate size, batch capacity and loading orientation
- Furnace arrangement, component position and mating interfaces
- Temperature profile, process atmosphere and pressure
- Confirmed material grade, surface and cleanliness requirements
- Drawing revision, inspection criteria and qualification route
